NSH-002

Custom Watch: “Minute Vector”

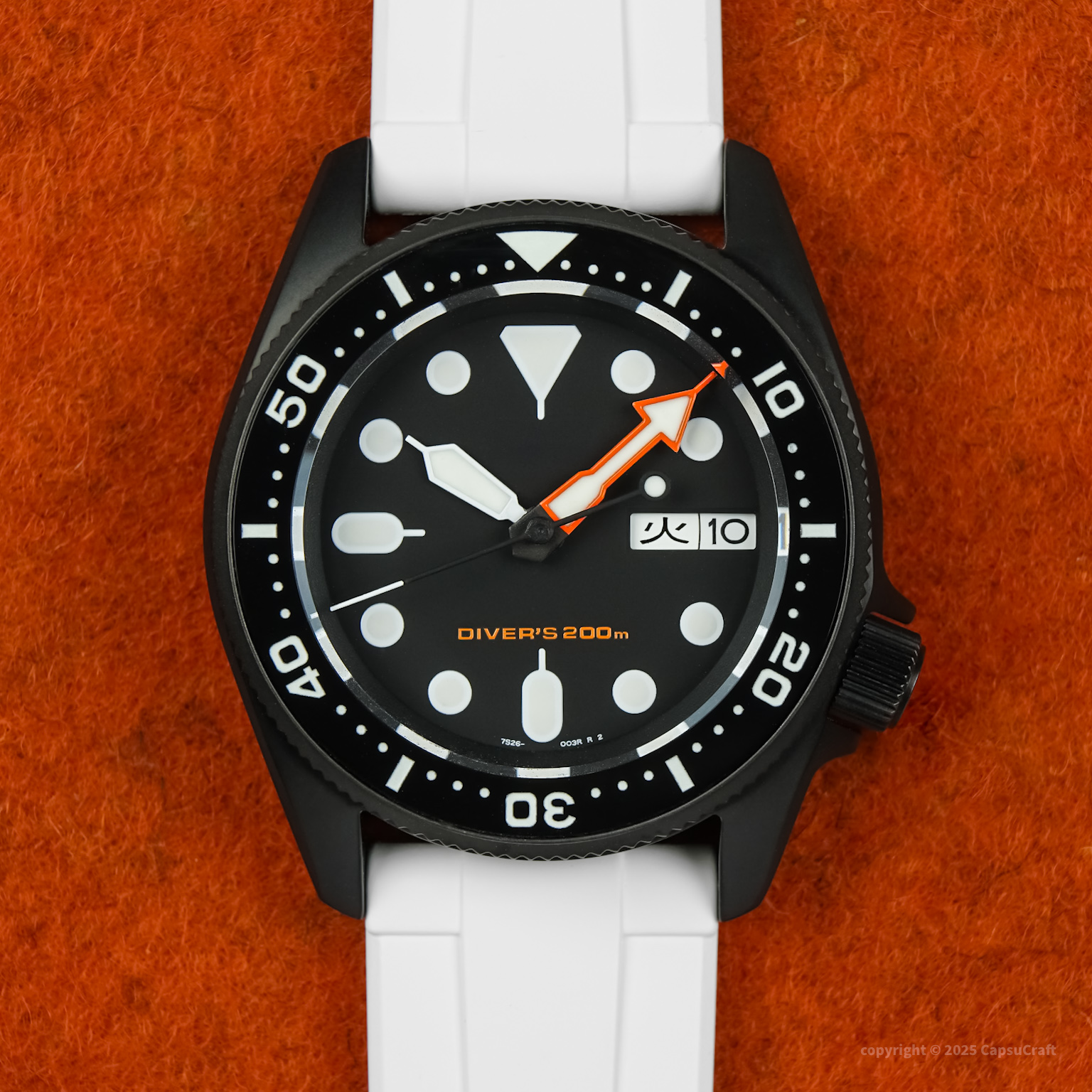

This is a small refinement to my original NSH-002: I blacked out the chapter ring with Tamiya TS-6 Matte Black, swapped in a white FKM strap, and upgraded the bezel insert.

Although this build uses an OEM SKX-013 dial, but I've removed the logo from the photos to avoid confusion with actual Seiko products.

Case Material Stainless Steel
Width 38 mm
Thickness 12.6 mm
Lug to Lug 44 mm
Weight (Watch Head) 68 grams
Strap Width 20 mm
Movement NH36
Lume C3 (Green)
Crystal Sapphire with Clear AR
Bezel Unidirectional Count-Up
Bezel Insert Fully-lumed Ceramic
Crown Screw-Down
Lowest Water Resistance 100 m (Due to the the slim caseback)

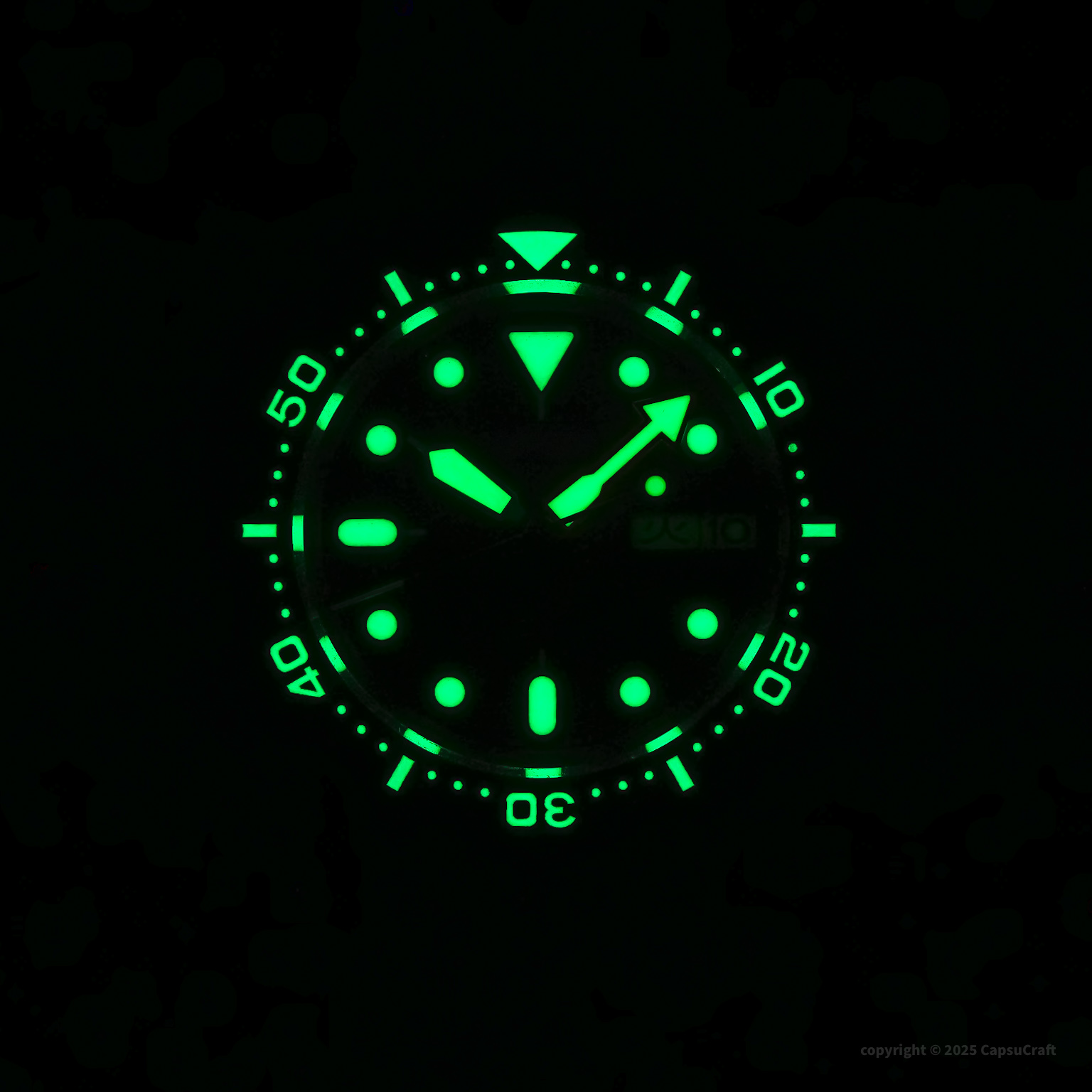

Gallery

Stacks Image 205
Stacks Image 207

Parts

Part Description Cost Supplier Notes Alternate Part
Bezel SKX013 Coin Edge Bezel - CT236CE Black $36 Crystaltimes Watch & Style
Bezel Insert CI0044 SKX013 Ceramic Bezel Insert - Flat Lumed SKX Style $45 Watch & Style Good quality Best quality
Case SKX013 Watch Case - CT706 Black $50 Crystaltimes Watch & Style (includes caseback, gasgets, spring bars, etc.; a great value)
Caseback SKX Slim Caseback – CT273 Black $20 Crystaltimes Caroline Mods Store
Bezel Insert Black Ceramic Luminous Bezel Insert for Seiko SKX013 Watches #C08 $45 Long Island Watch Best quality Good quality
Chapter Ring Paint Tamiya TS-6 Matte Black $8 Tamiya Although "matte black" chapter rings exist, they're closer in finish to a matte PVD case rather than a matte dial—which is to say, too shiny. Tamiya paints produce a fine finish that dries quickly; I recommend this brand over all others.
Crown SKX013 Crown – CT210 Black + S $26 Crystaltimes Bigger than most SKX013 crowns, but a great size: 4.0mm long × 6.1mm ø
Crystal 28 * 2.8mm Flat Big Chamfer Sapphire Crystal - Clear AR $20 Generic
Dial SEIKO OEM Dial SKX013 $85 Tokeilab Cha-ching! There are many knock-off dials, but I think they're inferior (smaller lume area, weaker lume, etc.)
Hands Green Luminous Watch Hands for NH35 NH36 Movement Watch $4 Fashional Watch Online Store Only used the hour and minute hands; Excellent lume; I hand-painted the base of the hour hand black.
Hands Watch Hands C3 green super lume Luminous fit NH35 $3 Mechanical Watch Assembly Store Only used the second hand; Hand-painted the center of the hand because there was a brass post hole
Movement Made in Japan NH36 Movement, Seiko NH36A Dual Calendar Mechanical Movement 3/3.8 o'clock Crown, Watch Repair Replacement Parts $34 AliExpress Had non-OEM day wheel and needed to be replaced; see note on Day Wheel entry
Movement Wheel, Day NH36A 4 o'clock Kanji Day Wheel Disc (White) $23 Namoki Mods Any OEM 3.8 O'Clock day wheel; non-OEM wheels have a different color and text weight and will not match the date wheel
Strap Fluoro Rubber Strap Sport Waterproof Stainless Steel Buckle Quick Release FKM $11 Generic These are good, generic FKM straps; 20mm
$410
Notes
  • Links are provided as helpful suggestions only; I have no affiliate relationship with any vendor or supplier.

  • Gaskets, springs, adhesives, stems, and other "consumables" are included with each item unless noted otherwise.

  • Prices are in US dollars.

  • Listed prices do not factor in tax, shipping, and discounts.

  • Updated November, 2024
